| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Brand Name | Bajaj |
| Length | n*K+160mm (2 |
| Width | n*K+160mm (2 |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Wall height
3P (2850mm) / 6P (5700mm) / 9P (8550mm)
Ground beam
C channel steel
Column
Double-C channel steel
Beam
Herringbone truss beam (welded by C type Steel)
Purlin
C80 channel steel
Wallboard
50mm thick double-face of color steel sandwich panel
Roof board
50mm/75mm Double-face of corrugated color steel sandwich panel
Door
Color steel sandwich panel door, size is 1620mm* 2000mm or 850mm* 2000mm
Window
Plastic steel sliding windows, size: 1735mm* 925mm
Bajaj Instafab & Bajaj Reinforcement LLP a Bajaj Group Company ventured into Prefab Structures business to serve the infrastructural & industrial growth of India. Bajaj Instafab offers a complete range of building solutions viz, Roofing, Ceiling, Wall, Door and Pre fabricated buildings for Industrial, Commercial and Residential sector. Our entire range perfectly meets with all the specific requirements of the clients. We aim to serve the infrastructure industries with high quality and timely delivery of Prefab Structures.

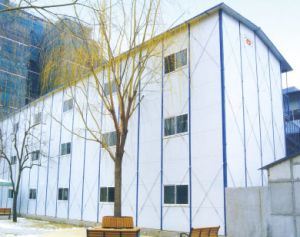

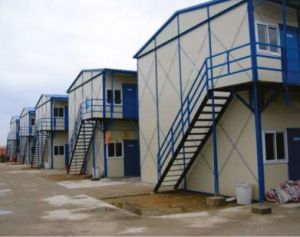

- Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof.
- The insulation of sandwich panels can be polystyrene, polyurethane, rock wool or fiber glass.
- Assembled by nuts and bolts, anchor fasteners.
- Modular, single piece, pre-engineered units comprising of two metal faces and fully insulated core to enhance thermal property.
- Polyurethane injected, twin skinned panel with tongue and groove and /or camlock system for perfect joint and connection.
- The twin skinned (inner and outer) is either made of powder coated or Galvanized steel.
- PUF insulated roof panel are design with option of high rib and low rib.
- Roof panel is made with inner side low ribbing and outer side high ribbing for easy flow of rain water.
- Kitchen
- Staff mess
- Sanitary
- Dormitory
- Bunk bed
- Electrical accessories
- Ventilation
- Furniture
- Labour Housing / Camp
- Primary School Building
- Primary Health Center
- Refuge Camp
- Base Telecom Shelter
- Police Housing
- Site Office
- Security Cabin
- Staff Quarters
- Clean Room
- Easy & Instant
- Installation
- Weather Resistance
- Knock – Down System
- Good Thermal Property
- Easily Relocated
- Water Proof
- Low Maintenance Cost
- Aesthetic Appearance
- Fire Retardant
- Anti Corrosion
- High Flexural Strength
- Good Impact Resistance Property
- Segmented Under Movable
.
.
- The specifications are various and structures are designed and custom made to suit your needs and requirements. The prefabricated house 1 are all made of standardized components, take K as modulus (1 K = 1820mm), the length and width of our prefab house is nK+160 and nK+160. Number of floors is denoted by the P modulus (1P=950mm), 3P being one storey, 6P two storey, 9p three storey.
.
- All the components of our house are prefabricated before leaving the factory, which are easily assembled and disassembled on worksite. The windows and doors of our prefabricated house can be freely arranged according to customer’s requirement.
.
- The complete knocked-down characteristic of our prefabricated house components can save as much space of the container as it can during ocean transportation so as to much lower transporting cost.
